Design Subsystem

 A model element which has the semantics of a package (it can contain other model elements) and a class (it has behavior).  The behavior of the subsystem is provided by classes or other subsystems it contains.  A subsystem realizes one or more interfaces, which define the behavior it can perform.
Topics

Subsystem Usage To top of page

Subsystems can be used in a number of complementary ways, to partition the system into units which:

  • can be independently ordered, configured, or delivered
  • can be independently developed, as long as the interfaces remain unchanged
  • can be independently deployed across a set of distributed computational nodes
  • can be independently changed without breaking other parts of the systems

In addition, subsystems can:

  • partition the system into units which can provide restricted security over key resources
  • represent existing products or external systems in the design

Identifying Subsystems from Class CollaborationsTo top of page

If the classes in a collaboration interact only with each other to produce a well-defined set of results, the collaboration and its classes should be encapsulated within a subsystem.

This rule can be applied to subsets of collaborations as well.  Anywhere part or all of a collaboration can be encapsulated and simplified, doing so will make the design easier to understand.

Hints

Hint

Details
Look for optionality If a particular collaboration (or sub-collaboration) represents optional behavior, enclose it in a subsystem.  Features which may be removed, upgraded, or replaced with alternatives should be considered independent.
Look to the user interface of the system. If the user interface is relatively independent of the entity classes in the system (i.e. the two can and will change independently), create subsystems which are horizontally integrated: group related user interface boundary classes together in a subsystem, and group related entity classes together in another subsystem.
If the user interface and the entity classes it displays are tightly coupled (i.e. a change in one triggers a change in the other), create subsystems which are vertically integrated: enclose related boundary and entity classes in common subsystem.
Look to the Actors Separate functionality used by two different actors, since each actor may independently change their requirements on the system.
Look for coupling and cohesion between classes Highly coupled or cohesive classes collaborate to provide some set of services.  Organize highly coupled classes into subsystems, separating classes along lines of weak coupling.  In some cases, weak coupling can be eliminated entirely by splitting classes into smaller classes with more cohesive responsibilities.
Look at substitution If there are several levels of service specified for a particular capability (example: high, medium and low availability), represent each service level as a separate subsystem, each of which will realize the same set of interfaces.  By doing so, the subsystems are substitutable for one another.
Look at distribution If particular functionality must reside on a particular node (such as a client workstation, or a particular device), ensure that the subsystem functionality maps onto a single node.  Split subsystems into several nodes, where necessary, in order to achieve this.

Once classes have been organized into subsystems, update the Use Case Realizations accordingly.

Documenting Subsystems To top of page

Once the subsystem has been created:

  • Each subsystem must be given a name and a short description.
  • Where tools support packages but not subsystems, packages can be used to document subsystems; the package stereotype <<subsystem>> should be used to denote a subsystem in this context.
  • The responsibilities of the original analysis class should be transferred to the newly-created subsystem, using the description of the subsystem to document the responsibilities.

Subsystems and Components To top of page

Components are implementation things; to represent the component in the design, a subsystem can be used as a proxy for the component.

  • Each part of the system should be as independent as possible from other parts of the system.
  • Ideally, it should be possible to replace any part of the system with a new part, provided the new part supports the same interfaces.
  • It should be possible to evolve different parts of the system independently from other parts of the system.

To this end, Design Subsystems provide an ideal way to represent components in the Design Model: they are design elements which encapsulate the behavior of a number of classes (as components encapsulate the behavior of a number of class instances), and their behavior is only accessed via the interfaces they realize (as is the case with components).

Subsystems That Represent Existing Products To top of page

Examples of products the system uses that you can represent by a subsystem include:

  • Communication software (middle-ware).
  • Database access support (RDBMS mapping support).
  • Types and data structures (stacks, lists, queues).
  • Common utilities (math libraries).
  • Application-specific products.

When defining the subsystem to represent the product, also define one or more interfaces to represent the product interfaces.

Subsystem Dependency Restrictions To top of page

Subsystems differ from packages in their semantics: a subsystem is a kind of package which provides behavior through one or more interfaces which it realizes.  Packages provide no behavior; they are simply containers of things which provide behavior.

The reason for using a subsystem instead of a package is that subsystems completely encapsulate their contents, providing behavior only through their interfaces.  The benefit of this is that, unlike a package, the contents and internal behaviors of a subsystem can change with complete freedom so long as the subsystem's interfaces remain constant.  Subsystems also provide a 'replaceable design' element: any two subsystems (or classes, for that matter) which realize the same interfaces are interchangeable.

In order to ensure that subsystems are replaceable elements in the model, a few rules need to be enforced:

  • A Subsystem should not expose any of its contents (i.e. no element contained by a subsystem should have 'public' visibility); no element outside the subsystem should depend on the existence of a particular element inside the subsystem.
  • A Subsystem should only depend on the interfaces of other model elements, so that it is not directly dependent on any specific model elements outside the subsystem.   The exceptions are cases where a number of subsystems share a set of class definitions in common, in which case those subsystems 'import' the contents of the packages which contain the common classes.  This should only be done with packages in lower layers in the architecture, and only to ensure that common definitions of classes which must pass between subsystems are consistently defined.

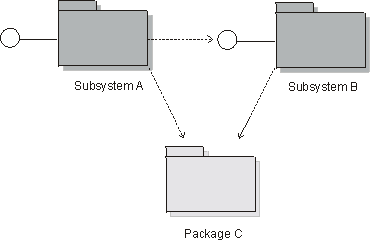

An example of Subsystem and Package dependencies is shown below:

Subsystem and Package Dependencies in the Design Model
